The DWM Series: Front Return Air Handler.
1.5 – 3 Ton · Front return · PSC motor. Deliver reliable, everyday comfort without breaking the budget. Engineered with eco-conscious R-32 refrigerant and a compact footprint, Dynoaire equipment balances upfront affordability with long-term durability for any residential build or retrofit.
SMART INVESTMENT
Cost-Effective 14.3 SEER2
BUILT TO LAST
Dependable & Low-Maintenance
VERSATILE INSTALL
Compact Design for Tight Spaces
ECO-CONSCIOUS
Next-Gen R-32 Refrigerant
Product lineup
Explore the Dynoaire family
Pick a unit to open its full specification sheet.
Outdoor condensers
Indoor units
Packaged residential
A CLOSER LOOK
DWM Front Return Air Handler
Ductless design
Ideal for additions, retrofits, and zones where ductwork isn't practical.
Quiet operation
Sound levels as low as 53 dB(A) for discreet wall-mounted comfort.
Compact profile
Low-profile cabinet blends into residential and light commercial interiors.
PSC motor
Reliable PSC fan motor with multiple speed taps for application tuning.
Easy service
Front-access panels and intuitive wiring for faster installation.
Matched system
Pairs with Dynoaire outdoor units for a complete comfort solution.
Cabinet Features
- Pre-painted steel cabinet
- Internal thermal insulation
- Front-removable access panels
- Built-in condensate drain connection
- Compact wall-mount bracket
Model finder · DWM Series
Pick a tonnage, get the numbers
Select a capacity to see the job-critical values for a single model. The full comparison table is below.
Model number
DWM5P181B00*
- Nominal capacity
- 17,400 BTU/h
- Airflow
- 630 CFM
- Voltage / phase
- 208-230 / 1 · 187 / 253 V
- MCA / MOP
- 2.25 A / 3 A
- Fan motor
- PSC · 1/5 HP · 1.8 A
- Liquid / suction line
- 3/8" / 3/4"
- Sound level
- 53 dB(A)

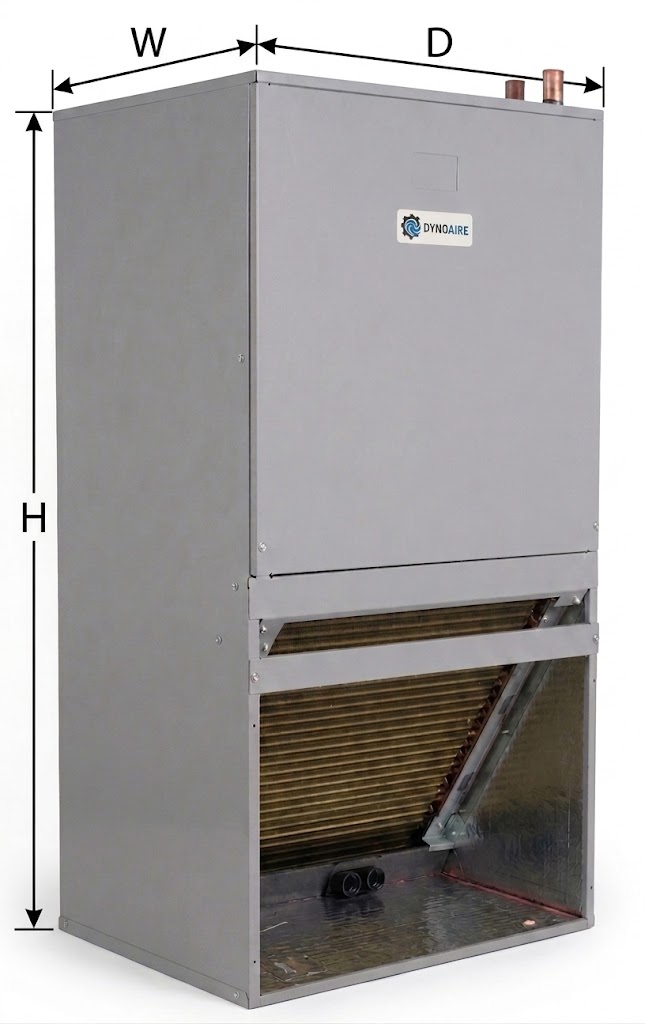

Dimensions — DWM5P181B00*
- Cabinet width
- 20-3/5"
- Cabinet height
- 36-1/2"
- Cabinet depth
- 16-3/5"
- Shipping carton W × H × L
- 23-1/4" × 39-3/4" × 19-7/16"
- Shipping weight
- 103 lbs
Front return specifications
DWM Series · 1.5–3 Ton · R-32 / R-410A · 208-230 V / 1 Ph
*Model suffix may vary by region.
Airmetric sales material — not for redistribution
Scroll the table sideways to compare models →
| Model | DWM5P181 1.5 Ton | DWM5P241 2 Ton | DWM5P301 2.5 Ton | DWM5P361 3 Ton |
|---|---|---|---|---|
| Performance | ||||
| Nominal tons | 1.5 | 2 | 2.5 | 3 |
| Cooling capacity | 17,400 BTU/h | 23,600 BTU/h | 26,800 BTU/h | 33,000 BTU/h |
| Airflow | 630 CFM | 710 CFM | 960 CFM | 1100 CFM |
| Sound level | 53 dB(A) | 54 dB(A) | 55 dB(A) | 57 dB(A) |
| Electrical | ||||
| Voltage / phase | 208-230 / 1 | 208-230 / 1 | 208-230 / 1 | 208-230 / 1 |
| Min / max voltage | 187 / 253 | 187 / 253 | 187 / 253 | 187 / 253 |
| MCA | 2.25 A | 2.25 A | 2.79 A | 2.79 A |
| MOP | 3 A | 3 A | 3 A | 3 A |
| Coil & fan motor | ||||
| Evaporator coil | Tube & Fin, Aluminum | Tube & Fin, Aluminum | Tube & Fin, Aluminum | Tube & Fin, Aluminum |
| Fan motor type | PSC | PSC | PSC | PSC |
| Fan capacitor | 10 | 10 | 15 | 15 |
| Fan motor HP | 1/5 | 1/5 | 3/10 | 3/10 |
| Fan motor FLA | 1.8 A | 1.8 A | 2.23 A | 2.23 A |
| Refrigeration | ||||
| Liquid line size (O.D.) (in.) | 3/8" | 3/8" | 3/8" | 3/8" |
| Suction line size (O.D.) (in.) | 3/4" | 3/4" | 3/4" | 3/4" |
| Dimensions & shipping | ||||
| Cabinet W × H × L | 20-3/5" × 36-1/2" × 16-3/5" | 20-3/5" × 36-1/2" × 16-3/5" | 22" × 39-3/5" × 19" | 22" × 39-3/5" × 19" |
| Shipping W × H × L | 23-1/4" × 39-3/4" × 19-7/16" | 23-1/4" × 39-3/4" × 19-7/16" | 24-5/8" × 42-15/16" × 22-1/4" | 24-5/8" × 42-15/16" × 22-1/4" |
| Shipping weight | 103 lbs | 103 lbs | 119 lbs | 119 lbs |
Performance
- Nominal tons
- 1.5
- Cooling capacity
- 17,400 BTU/h
- Airflow
- 630 CFM
- Sound level
- 53 dB(A)
Electrical
- Voltage / phase
- 208-230 / 1
- Min / max voltage
- 187 / 253
- MCA
- 2.25 A
- MOP
- 3 A
Coil & fan motor
- Evaporator coil
- Tube & Fin, Aluminum
- Fan motor type
- PSC
- Fan capacitor
- 10
- Fan motor HP
- 1/5
- Fan motor FLA
- 1.8 A
Refrigeration
- Liquid line size (O.D.) (in.)
- 3/8"
- Suction line size (O.D.) (in.)
- 3/4"
Dimensions & shipping
- Cabinet W × H × L
- 20-3/5" × 36-1/2" × 16-3/5"
- Shipping W × H × L
- 23-1/4" × 39-3/4" × 19-7/16"
- Shipping weight
- 103 lbs
Performance
- Nominal tons
- 2
- Cooling capacity
- 23,600 BTU/h
- Airflow
- 710 CFM
- Sound level
- 54 dB(A)
Electrical
- Voltage / phase
- 208-230 / 1
- Min / max voltage
- 187 / 253
- MCA
- 2.25 A
- MOP
- 3 A
Coil & fan motor
- Evaporator coil
- Tube & Fin, Aluminum
- Fan motor type
- PSC
- Fan capacitor
- 10
- Fan motor HP
- 1/5
- Fan motor FLA
- 1.8 A
Refrigeration
- Liquid line size (O.D.) (in.)
- 3/8"
- Suction line size (O.D.) (in.)
- 3/4"
Dimensions & shipping
- Cabinet W × H × L
- 20-3/5" × 36-1/2" × 16-3/5"
- Shipping W × H × L
- 23-1/4" × 39-3/4" × 19-7/16"
- Shipping weight
- 103 lbs
Performance
- Nominal tons
- 2.5
- Cooling capacity
- 26,800 BTU/h
- Airflow
- 960 CFM
- Sound level
- 55 dB(A)
Electrical
- Voltage / phase
- 208-230 / 1
- Min / max voltage
- 187 / 253
- MCA
- 2.79 A
- MOP
- 3 A
Coil & fan motor
- Evaporator coil
- Tube & Fin, Aluminum
- Fan motor type
- PSC
- Fan capacitor
- 15
- Fan motor HP
- 3/10
- Fan motor FLA
- 2.23 A
Refrigeration
- Liquid line size (O.D.) (in.)
- 3/8"
- Suction line size (O.D.) (in.)
- 3/4"
Dimensions & shipping
- Cabinet W × H × L
- 22" × 39-3/5" × 19"
- Shipping W × H × L
- 24-5/8" × 42-15/16" × 22-1/4"
- Shipping weight
- 119 lbs
Performance
- Nominal tons
- 3
- Cooling capacity
- 33,000 BTU/h
- Airflow
- 1100 CFM
- Sound level
- 57 dB(A)
Electrical
- Voltage / phase
- 208-230 / 1
- Min / max voltage
- 187 / 253
- MCA
- 2.79 A
- MOP
- 3 A
Coil & fan motor
- Evaporator coil
- Tube & Fin, Aluminum
- Fan motor type
- PSC
- Fan capacitor
- 15
- Fan motor HP
- 3/10
- Fan motor FLA
- 2.23 A
Refrigeration
- Liquid line size (O.D.) (in.)
- 3/8"
- Suction line size (O.D.) (in.)
- 3/4"
Dimensions & shipping
- Cabinet W × H × L
- 22" × 39-3/5" × 19"
- Shipping W × H × L
- 24-5/8" × 42-15/16" × 22-1/4"
- Shipping weight
- 119 lbs
Built to last. Backed to protect.
10-Year
Registered Limited Warranty
Parts & compressor coverage when registered within 60 days.
1-Year
Product Replacement Pledge
If the compressor or condenser coil fails in year one, the whole AC unit is replaced.
Base
Limited Warranty
7-year compressor / 5-year parts coverage even without registration.
Register online within 60 days of installation
Register your unitResidential/multi-family installations by a licensed HVAC service provider as part of an AHRI-rated matched system. See warranty document for full terms, conditions, and exclusions. Labor, diagnostics, and shipping costs are not covered.
