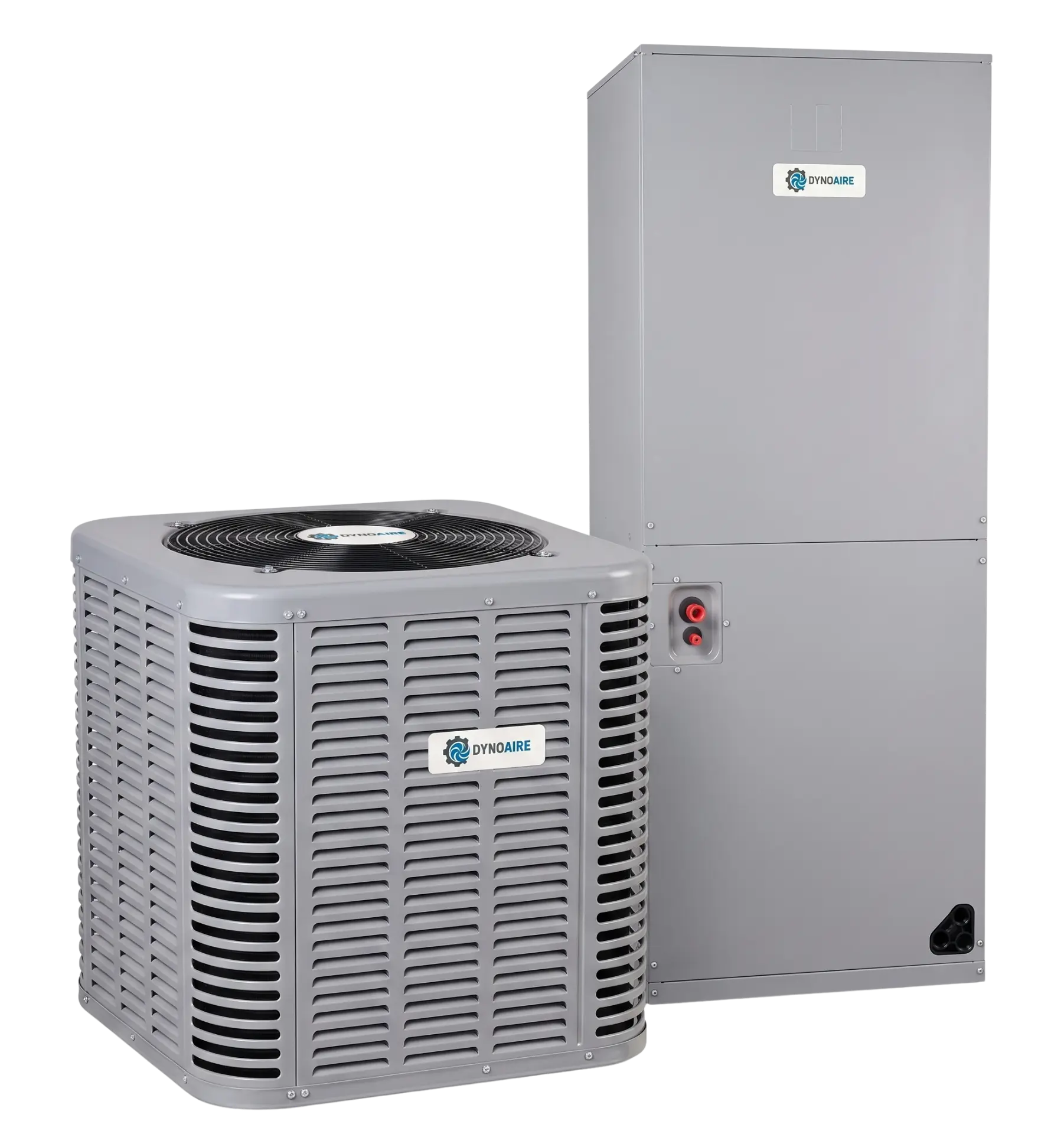

Dynoaire DAC series split-system air conditioner with outdoor condensing unit and indoor air handler

The DAC Series: 1.5 – 5 Ton Split System Air Conditioner.

Deliver reliable, everyday comfort without breaking the budget. Engineered with eco-conscious R-32 refrigerant and a highly compact footprint, the Dynaire DAC series offers the perfect balance of upfront affordability and long-term durability for any residential build or retrofit.

SMART INVESTMENT

Cost-Effective 14.3 SEER2

BUILT TO LAST

Dependable & Low-Maintenance

VERSATILE INSTALL

Compact Design for Tight Spaces

ECO-CONSCIOUS

Next-Gen R-32 Refrigerant

Download Tech Specs

A CLOSER LOOK

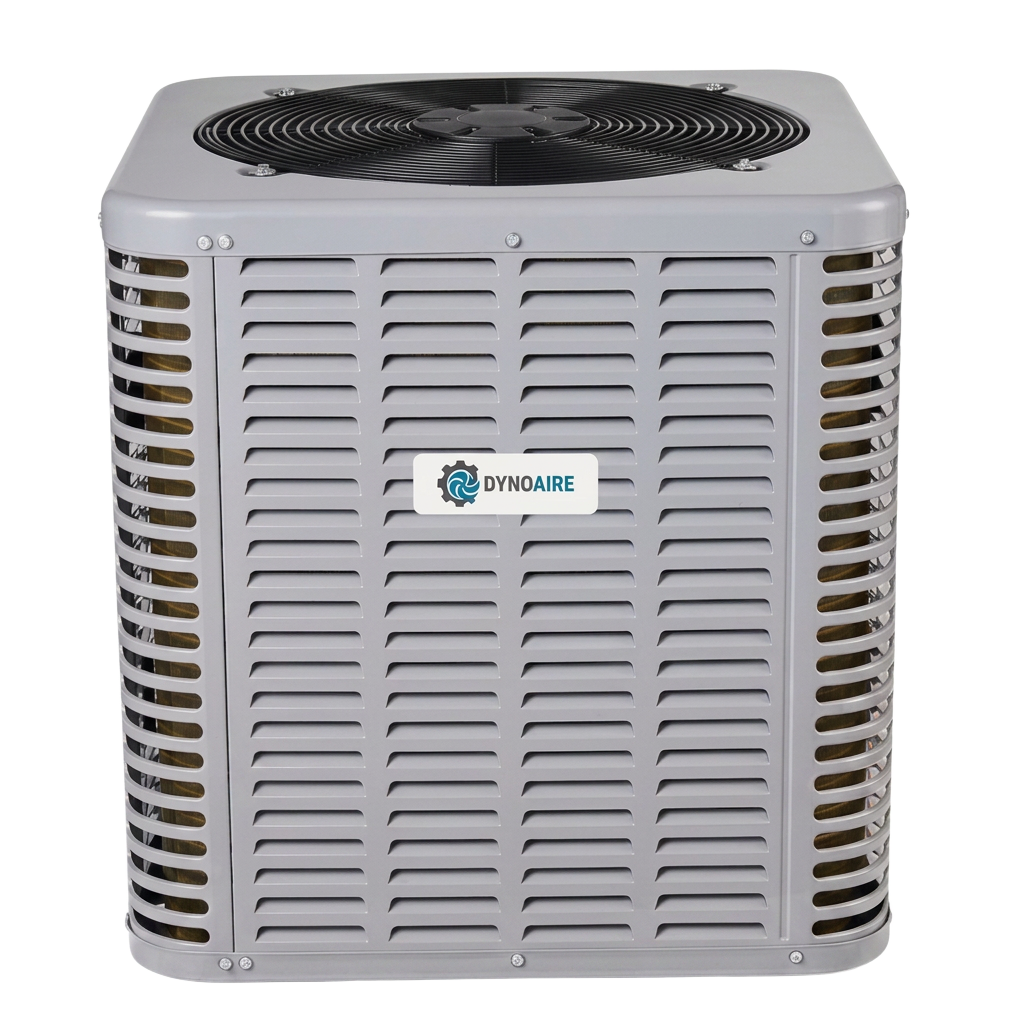

DAC-5 Split System Air Conditioner

R-32 Refrigerant

Eco-friendly R-32 refrigerant with a low GWP value.

LG Scroll Compressor

Energy-efficient LG scroll compressor equipped with thermal overload protection.

Condenser Construction

Inner-groove copper tube and aluminum fin condenser.

Service Access

Service valves with sweat connections and easy-access gauge ports.

High-Pressure Switch

Factory-installed high-pressure switch for system protection.

Mechanical Controls (No PCB)

Mechanical control system with no printed circuit board (PCB) for simplified maintenance.

Cabinet Features

Compact design allows for easy installation and maintenance.
Powder-painted galvanized steel cabinet chassis.
Protective steel louvered coil guard and steel wire axial fan guard.
Unique fan blade engineered for quieter operation.

Product lineup

Explore the Dynoaire family

Pick a unit to load its specs below — everything stays on this page.

Outdoor condensers

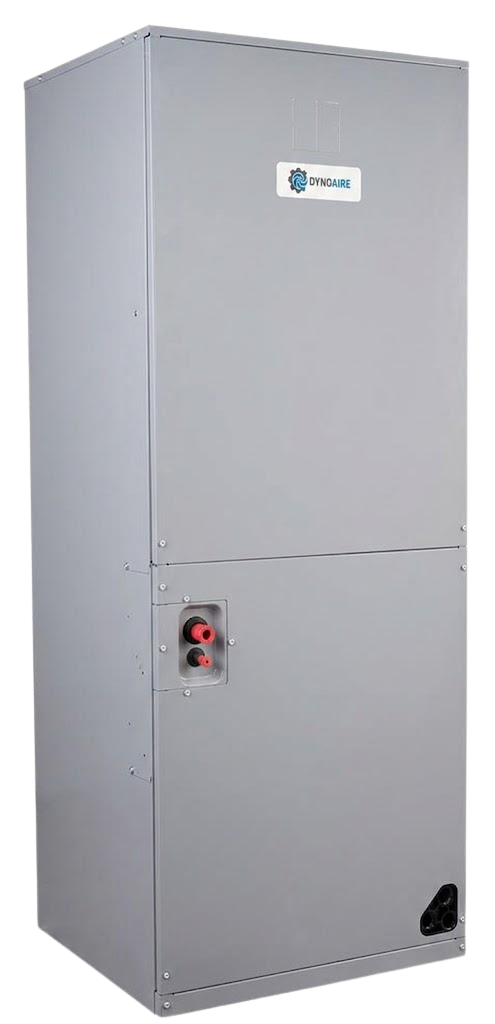

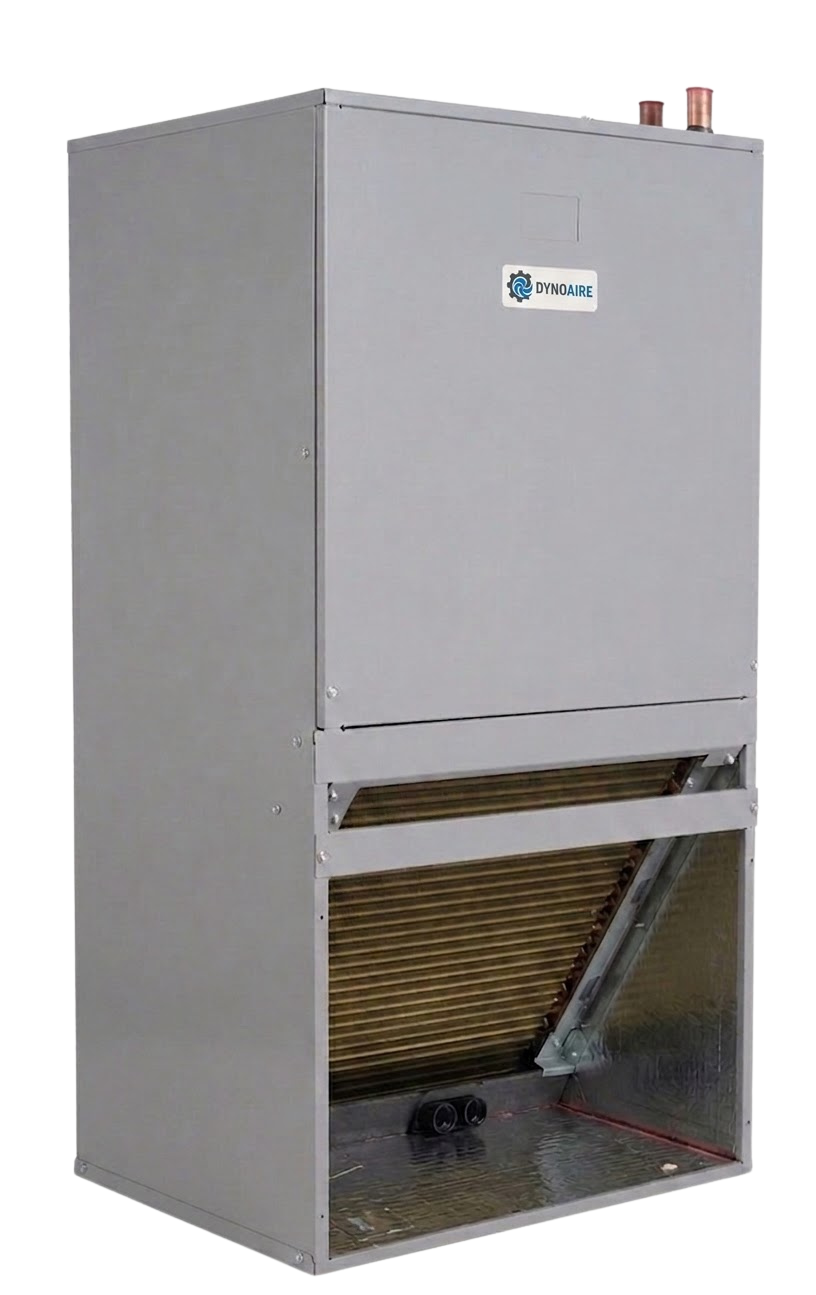

Indoor units

Model finder · DAC-5 Series

Pick a tonnage, get the numbers

Select a capacity to see the job-critical values for a single model. The full comparison table is below.

Model number

DAC5018E1000*

Nominal capacity: 18,000 BTU/h
Voltage / phase: 208-230 / 1 · 187 / 253 V
MCA / MOP: 10.5 A / 15 A
Compressor RLA / LRA: 7.3 A / 47 A
Fan motor: PSC · 1/9 HP · 0.8 A
Liquid / suction line: 3/8" / 3/4"
Chargeless line length: 25 ft. [7.5 m]
Cooling range: 55–120 °F
Sound level: 60 dB(A)

Dimensions — DAC5018E1000*

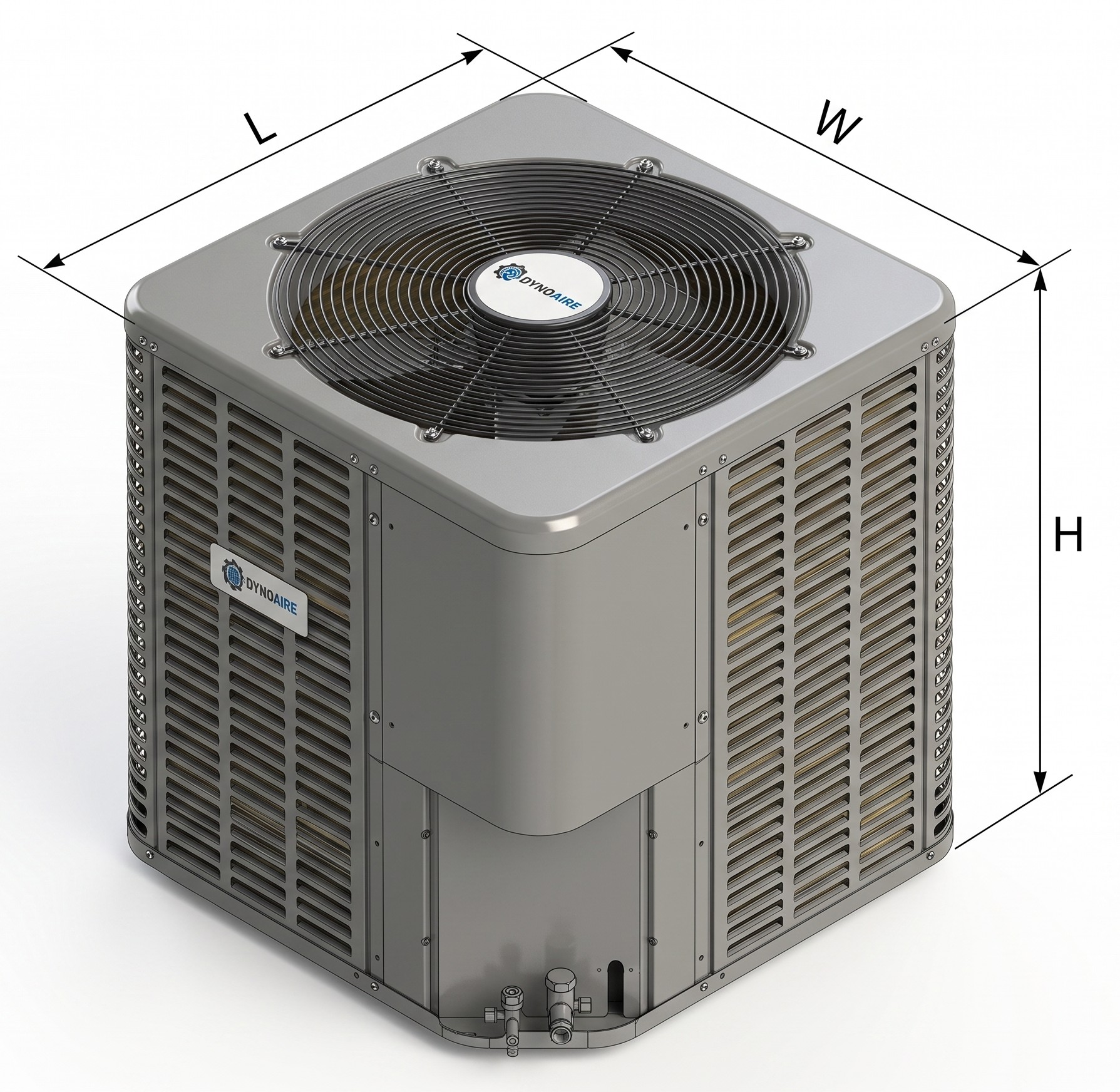

Dynoaire DAC-5 condenser cabinet dimension diagram

Cabinet width: 23-3/5"
Cabinet height: 25"
Cabinet depth: 23-3/5"
Shipping carton W × H × L: 24-13/16" × 26-1/8" × 24-13/16"
Shipping weight: 139 lbs

Straight cool specifications

DAC-5 Series · 1.5–5 Ton · R-32 · 208-230 V / 1 Ph · 14.3 SEER2
*Model suffix may vary by region.

Scroll the table sideways to compare models →

Model	DAC5018 1.5 Ton	DAC5024 2 Ton	DAC5030 2.5 Ton	DAC5036 3 Ton	DAC5042 3.5 Ton	DAC5048 4 Ton	DAC5060 5 Ton
Performance
Nominal tons	1.5	2	2.5	3	3.5	4	5
Cooling capacity	18,000 BTU/h	23,600 BTU/h	27,800 BTU/h	33,000 BTU/h	40,000 BTU/h	45,000 BTU/h	55,000 BTU/h
Cooling range	55–120 °F	55–120 °F	55–120 °F	55–120 °F	55–120 °F	55–120 °F	55–120 °F
Sound level	60 dB(A)	63 dB(A)	63 dB(A)	65 dB(A)	65 dB(A)	65 dB(A)	65 dB(A)
Electrical
Voltage / phase	208-230 / 1	208-230 / 1	208-230 / 1	208-230 / 1	208-230 / 1	208-230 / 1	208-230 / 1
Min / max voltage	187 / 253	187 / 253	187 / 253	187 / 253	187 / 253	187 / 253	187 / 253
MCA	10.5 A	13.5 A	16.7 A	19.5 A	23.9 A	23.4 A	39.9 A
MOP	15 A	20 A	25 A	30 A	35 A	40 A	60 A
Compressor
Type	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
Stage	Single	Single	Single	Single	Single	Single	Single
RLA	7.3 A	9.7 A	11 A	13.5 A	18.4 A	17.5 A	30.7 A
LRA	47 A	65 A	69 A	86 A	96 A	102 A	134 A
Crankcase heater	No	No	No	No	No	No	No
Coil & fan motor
Condenser coil	Tube & Fin	Tube & Fin	Tube & Fin	Tube & Fin	Tube & Fin	Tube & Fin	Tube & Fin
Fan motor type	PSC	PSC	PSC	PSC	PSC	PSC	PSC
Fan capacitor	6	6	6	6	6	12	12
Fan motor HP	1/9	1/9	1/5	1/7	1/7	1/3	1/3
Fan motor FLA	0.8 A	0.8 A	1.5 A	1 A	1 A	1.5 A	1.5 A
Refrigeration
Liquid line	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"
Suction line	3/4"	3/4"	3/4"	3/4"	3/4"	7/8"	7/8"
Chargeless length	25 ft. [7.5 m]	25 ft. [7.5 m]	25 ft. [7.5 m]	25 ft. [7.5 m]	25 ft. [7.5 m]	25 ft. [7.5 m]	25 ft. [7.5 m]
Dimensions & shipping
Cabinet W × H × L	23-3/5" × 25" × 23-3/5"	23-3/5" × 25" × 23-3/5"	23-3/5" × 25" × 23-3/5"	29-1/7" × 25" × 29-1/7"	29-1/7" × 32-7/8" × 29-1/7"	29-1/7" × 32-7/8" × 29-1/7"	29-1/7" × 32-7/8" × 29-1/7"
Shipping W × H × L	24-13/16" × 26-1/8" × 24-13/16"	24-13/16" × 26-1/8" × 24-13/16"	24-13/16" × 26-1/8" × 24-13/16"	30-1/2" × 26-1/8" × 30-1/2"	30-1/2" × 34" × 30-1/2"	30-1/2" × 34" × 30-1/2"	30-1/2" × 34" × 30-1/2"
Shipping weight	139 lbs	139 lbs	148 lbs	160 lbs	195 lbs	214 lbs	214 lbs

DAC5018

1.5 Ton · 18,000 BTU/h

Performance

Nominal tons: 1.5
Cooling capacity: 18,000 BTU/h
Cooling range: 55–120 °F
Sound level: 60 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 10.5 A
MOP: 15 A

Compressor

Type: Scroll
Stage: Single
RLA: 7.3 A
LRA: 47 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 6
Fan motor HP: 1/9
Fan motor FLA: 0.8 A

Refrigeration

Liquid line: 3/8"
Suction line: 3/4"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 23-3/5" × 25" × 23-3/5"
Shipping W × H × L: 24-13/16" × 26-1/8" × 24-13/16"
Shipping weight: 139 lbs

DAC5024

2 Ton · 23,600 BTU/h

Performance

Nominal tons: 2
Cooling capacity: 23,600 BTU/h
Cooling range: 55–120 °F
Sound level: 63 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 13.5 A
MOP: 20 A

Compressor

Type: Scroll
Stage: Single
RLA: 9.7 A
LRA: 65 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 6
Fan motor HP: 1/9
Fan motor FLA: 0.8 A

Refrigeration

Liquid line: 3/8"
Suction line: 3/4"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 23-3/5" × 25" × 23-3/5"
Shipping W × H × L: 24-13/16" × 26-1/8" × 24-13/16"
Shipping weight: 139 lbs

DAC5030

2.5 Ton · 27,800 BTU/h

Performance

Nominal tons: 2.5
Cooling capacity: 27,800 BTU/h
Cooling range: 55–120 °F
Sound level: 63 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 16.7 A
MOP: 25 A

Compressor

Type: Scroll
Stage: Single
RLA: 11 A
LRA: 69 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 6
Fan motor HP: 1/5
Fan motor FLA: 1.5 A

Refrigeration

Liquid line: 3/8"
Suction line: 3/4"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 23-3/5" × 25" × 23-3/5"
Shipping W × H × L: 24-13/16" × 26-1/8" × 24-13/16"
Shipping weight: 148 lbs

DAC5036

3 Ton · 33,000 BTU/h

Performance

Nominal tons: 3
Cooling capacity: 33,000 BTU/h
Cooling range: 55–120 °F
Sound level: 65 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 19.5 A
MOP: 30 A

Compressor

Type: Scroll
Stage: Single
RLA: 13.5 A
LRA: 86 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 6
Fan motor HP: 1/7
Fan motor FLA: 1 A

Refrigeration

Liquid line: 3/8"
Suction line: 3/4"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 29-1/7" × 25" × 29-1/7"
Shipping W × H × L: 30-1/2" × 26-1/8" × 30-1/2"
Shipping weight: 160 lbs

DAC5042

3.5 Ton · 40,000 BTU/h

Performance

Nominal tons: 3.5
Cooling capacity: 40,000 BTU/h
Cooling range: 55–120 °F
Sound level: 65 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 23.9 A
MOP: 35 A

Compressor

Type: Scroll
Stage: Single
RLA: 18.4 A
LRA: 96 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 6
Fan motor HP: 1/7
Fan motor FLA: 1 A

Refrigeration

Liquid line: 3/8"
Suction line: 3/4"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 29-1/7" × 32-7/8" × 29-1/7"
Shipping W × H × L: 30-1/2" × 34" × 30-1/2"
Shipping weight: 195 lbs

DAC5048

4 Ton · 45,000 BTU/h

Performance

Nominal tons: 4
Cooling capacity: 45,000 BTU/h
Cooling range: 55–120 °F
Sound level: 65 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 23.4 A
MOP: 40 A

Compressor

Type: Scroll
Stage: Single
RLA: 17.5 A
LRA: 102 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 12
Fan motor HP: 1/3
Fan motor FLA: 1.5 A

Refrigeration

Liquid line: 3/8"
Suction line: 7/8"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 29-1/7" × 32-7/8" × 29-1/7"
Shipping W × H × L: 30-1/2" × 34" × 30-1/2"
Shipping weight: 214 lbs

DAC5060

5 Ton · 55,000 BTU/h

Performance

Nominal tons: 5
Cooling capacity: 55,000 BTU/h
Cooling range: 55–120 °F
Sound level: 65 dB(A)

Electrical

Voltage / phase: 208-230 / 1
Min / max voltage: 187 / 253
MCA: 39.9 A
MOP: 60 A

Compressor

Type: Scroll
Stage: Single
RLA: 30.7 A
LRA: 134 A
Crankcase heater: No

Coil & fan motor

Condenser coil: Tube & Fin
Fan motor type: PSC
Fan capacitor: 12
Fan motor HP: 1/3
Fan motor FLA: 1.5 A

Refrigeration

Liquid line: 3/8"
Suction line: 7/8"
Chargeless length: 25 ft. [7.5 m]

Dimensions & shipping

Cabinet W × H × L: 29-1/7" × 32-7/8" × 29-1/7"
Shipping W × H × L: 30-1/2" × 34" × 30-1/2"
Shipping weight: 214 lbs

How to read a model

Model nomenclature

DAC5018E1000A

DBrand Name: Dynoaire
ACProduct Family: Air Conditioner
5Efficiency Rating: 14.3 SEER2
018Capacity: 18k BTU/h (example)
EMajor Development Sequence: A–Z
1Electric Power Supply: 208-230V / 1Ph
000Secondary Function: No Secondary Function
AMinor Design Sequence: A–Z

Warranty

Built to last. Backed to protect.

10-Year

Registered Limited Warranty

Parts & compressor coverage when registered within 60 days.

1-Year

Product Replacement Pledge

If the compressor or condenser coil fails in year one, the whole AC unit is replaced.

Base

Limited Warranty

7-year compressor / 5-year parts coverage even without registration.

Residential/multi-family installations by a licensed HVAC service provider as part of an AHRI-rated matched system. See warranty document for full terms, conditions, and exclusions. Labor, diagnostics, and shipping costs are not covered.
